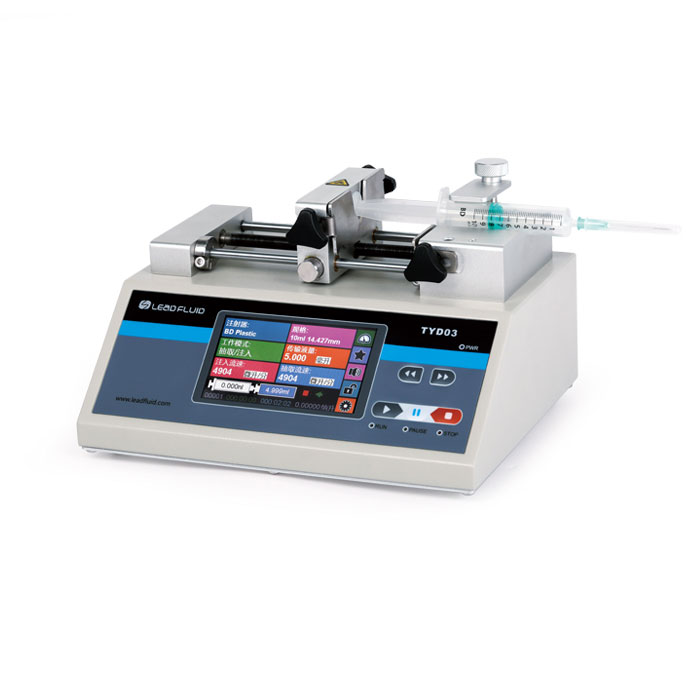

★TYD03系列
| 一般注射器的最大最小流速 | |||||
| 规格 | 内径 | 最小流量 | 单位 | 最大流量 | 单位 |
| 0.5µl | 0.103mm | 1.666 | pl/min | 0.249 | µl/min |
| 1 µl | 0.146mm | 3.348 | pl/min | 0.502 | µl/min |
| 2 µl | 0.206mm | 6.665 | pl/min | 0.999 | µl/min |
| 5 µl | 0.343mm | 16.663 | pl/min | 2.499 | µl/min |
| 10µl | 0.485mm | 36.949 | pl/min | 5.542 | µl/min |
| 25µl | 0.729mm | 83.478 | pl/min | 12.522 | µl/min |
| 50µl | 1.03mm | 166.646 | pl/min | 24.996 | µl/min |
| 100µl | 1.457mm | 0.333 | nl/min | 50.018 | µl/min |
| 250µl | 2.304mm | 0.833 | nl/min | 125.076 | µl/min |
| 500µl | 3.256mm | 1.665 | nl/min | 249.792 | ul/min |
| 1000 µl | 4.608mm | 3.335 | nl/min | 0.5 | ml/min |
| 1ml | 4.699mm | 3.468 | nl/min | 0.52 | ml/min |
| 3ml | 8.585mm | 11.577 | nl/min | 1.736 | ml/min |
| 5ml | 11.989mm | 22.578 | nl/min | 3.386 | ml/min |
| 10ml | 14.427mm | 32.694 | nl/min | 4.904 | ml/min |
| 20ml | 19.05mm | 57.004 | nl/min | 8.55 | ml/min |
| 30ml | 21.59mm | 73.219 | nl/min | 10.982 | ml/min |
| 50ml | 26.594mm | 111.093 | nl/min | 16.663 | ml/min |
| 60ml | 26.594mm | 111.093 | nl/min | 16.663 | ml/min |
